Servovalves control world's largest paper machine

Aug. 23, 2005

The world's largest paper machine, developed by pulp and paper machinery builder Metso Paper, Inc., Jyvaskyla, Finland, has a wire width of 11.3 m and runs at 2000 m/ min ( 75 mph).

The world's largest paper machine, developed by pulp and Metso Paper Inc., Jyvaskyla, Finland, has a wire width of 11.3 m and runs at 2000 m/min ( 75 mph). It is scheduled for startup at the end of this year. How do you control something so large and fast? With digital electrohydraulic valves — more than 600 of them. Moog Inc., Industrial Controls Div., East Aurora, N.Y. is supplying hundreds of their new digital servovalves and servo-proportional valves on this unprecedented machine.

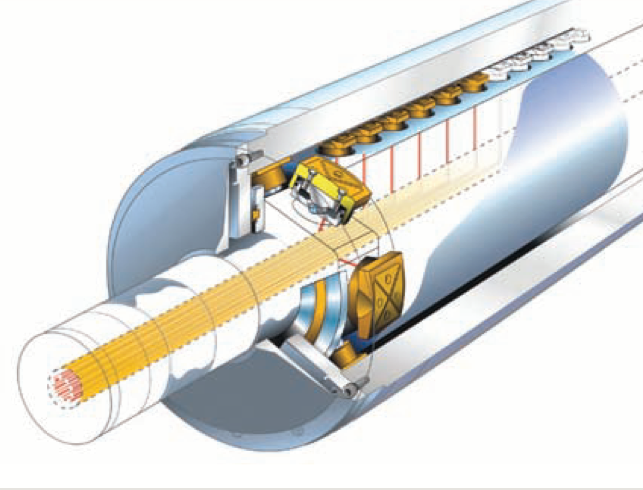

Hydraulic cylinders inside each paper-making roll exert forces at load zones to maintain a controlled profile across the full width of the roll. The forces exerted by each cylinder are controlled by Moog D638 pQ servovalves and are hydrostatically counterbalanced on the opposite side of the roll. Pressure in the counterbalance zones is controlled by Moog D941 pQ servo-proportional valves. (Click on image for larger view.)

Moog developed its new hydraulic valve platform, Digital Interface Valves, with microprocessor based electronics and fieldbus interface. The valves offer digital flow and pressure control and can replace analog technology. Their configurable functions enable tailoring dynamics of the valve to match particular application requirements. The valves are key to implementing a distributed control concept by allowing tasks to be assigned to local devices rather than through a main control device. providing machines with increased flexibility and functionality.

The servo-proportional valves exhibit a higher frequency response than their predecessors, allowing high spool position loop gain that improves static and dynamic response. This stems from the valve's high natural frequency of its ServoJet pilot stage (500 Hz) and advanced current control algorithms, which is only possible via digital electronics.

Hydraulicspneumatics Com Sites Hydraulicspneumatics com Files Uploads 2013 07 Moog D941 Series Servovalve

Moog's D941 servo-proportional valve can be used in large, complex machines, like the Metso Super Calender paper making machine, that require multiple motion axes and high volumes of wiring. Series D941 is offered in flow capacities of up to 80 lpm (21.1 gpm) at pressures to 5 bar (75 psi)

The valves also feature improved flow recovery (more than 90% of the pilot stage internal leakage flow), which contributes to energy savings, especially in machines with multiple valves. Plus, high-pressure recovery of the ServoJet pilot stage (more than 80% AP at 100% command signal) produces high spool driving forces to ensure enhanced spool position repeatability.

For more information on Moog's Series 638 digital interface valves or Series D941 Digital pQ servo-proportional valves, call ( 716) 687- 7764, or visit www.moog.com/industrial
