Raising the bar on compressor efficiency

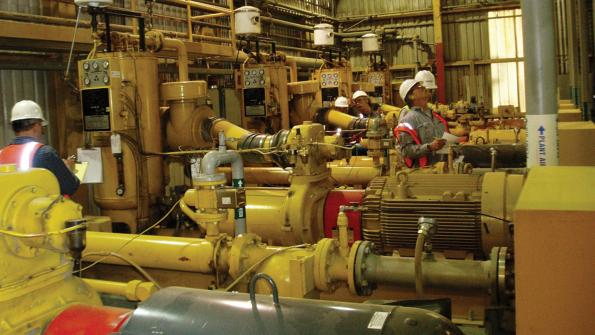

A typical plant has several compressors. A compressed air system controller with pre-emptive control capability helps them run most economically. Photo courtesy of Roseburg Forest Products.

To avoid a low-pressure situation, you could raise the threshold pressure at which additional compressors are turned on, and many plants do just that. But the effect of this is to run the compressor system at an average pressure that is higher than necessary. This wastes energy, and a pattern of doing this may result in the factory purchasing and maintaining more compressors than necessary. Further, systems that run at a higher pressure can leak more and wear out sooner than those that run at lower pressures. All these factors add extra cost to the manufacturing process.

A better alternative is to use a compressor control system that determines which compressors to run using a whole range of criteria, with system pressure and rate of flow being only two considerations. An example of controllers that do this is the PL4000 Series manufactured by Pneu-Logic Corp. The PL4000 balances the supply of air with demand using a proprietary process whereby the controller decides which compressors to run to ensure adequate air supply while minimizing energy use and maintenance costs.

The PL4000’s control algorithm selects which compressor to run based on the availability of compressors and a score that is assigned to each compressor (which serves as a measure of that compressor’s “readiness”). The evaluation process is complex due to the sizeable number of possible combinations in the typical multi-compressor plant. The controller maintains a database of compressor combinations that provides the best performance for different conditions.

Pneumatic controllers
You might think a typical PLC could handle the compressor control task. However, with a large number of compressors, this becomes unwieldy for a PLC program. Furthermore, sequencers generally can’t manage the flexibility required because they are typically hard wired to follow a particular sequence.

The Pneu-Logic PL4000 uses proprietary control algorithms to finely balance air supply with demand.

The PL4000 selects compressors to run in a two-step process. First, it identifies which groupings of compressors to call upon to provide air to meet a particular need. Second, it selects which compressors to run within a particular group according to their scores.

The controller’s display can show, for example, a typical staging table that identifies compressor groupings and associated system pressures they can maintain. Drill-down screens can focus on current flow requirements and show which compressor or compressors would be activated if the flow requirement increases, or if some other factor calls for shutting an operating compressor down.

The control system picks the next compressor to run based on an algorithm that takes various factors into account, including how many hours each compressor has run and when maintenance is scheduled for a particular compressor. The decision is often not obvious: It’s not always economical to simply run the most-efficient compressor all the time. Otherwise, the system would tend to wear out the most-efficient compressor first.

Keeping score
To avoid this, the controller assigns each compressor a run-time score that changes over time as the compressor operates. When a compressor hits a threshold, the control system gives it a break and turns on another from the same group, with a similar capability. Run-time scoring lets the controller predict when operating compressors should be turned off and replaced with compressors in reserve.

Compressors may also be taken off line for maintenance, and the scoring algorithm needs to accommodate that. For example, say a particular compressor’s oil must be changed every 8000 hr of operation. The controller keeps track of operating run time and, as the compressor approaches 8000 hr, the run-time factor starts to affect that compressor’s overall score. This score determines when the compressor will run, ultimately keeping it out of the mix until preventive maintenance is performed.

This staging table shows the combination of compressors that would generate the flow listed on the diagonal line.

Compressor controls, such as those in the PL4000, can also enforce operating rules. For instance, efficient operation of a compressor network dictates that only one unit, the trim compressor, will be allowed to run at partial output. The rest should be run at full-flow output.

There may be other external control factors that should be worked into the mix. The control system should accept user-defined inputs. For example, by incorporating production forecasts or production rates, the control system can accommodate compressor maintenance during slack periods, or it can flag when the system will be called upon to operate near its performance limits. The ability to incorporate user-defined functions into the mix can also be used by plant engineers to test different control strategies.

Building intelligence into the compressor controls adds the ability to inform users of system status. Operators would like to know at a glance how the system is performing. For this, the PL4000’s operator screen displays the status of all of the compressors in the network and also allows viewing the operational status of any individual compressor. Because the displays also provide information on the operating efficiency of the system, being able to review real-time results makes it easier for plants to sustain cost-saving initiatives. The PL4000 can also export operational data to a plant’s distributed control system for remote viewing and analysis.

Different plants can have vastly different requirements for compressed air, so a single strategy for compressor control won’t fit them all. In general, though, control strategies that consider usage factors in addition to predicted demand will save the most energy and hold down maintenance costs.
